RO Water Treatment System for Cannabis Growing Irrigation 8000LPH

2019-03-12 16:16:00 mike 851 0 Like

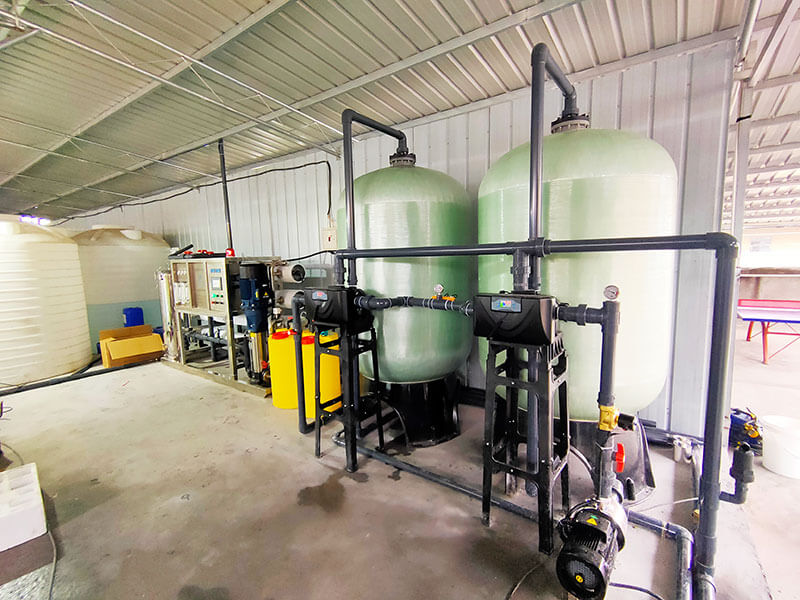

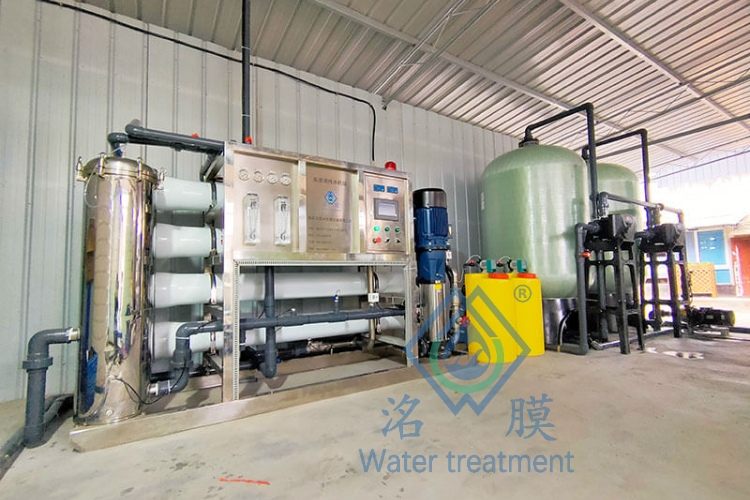

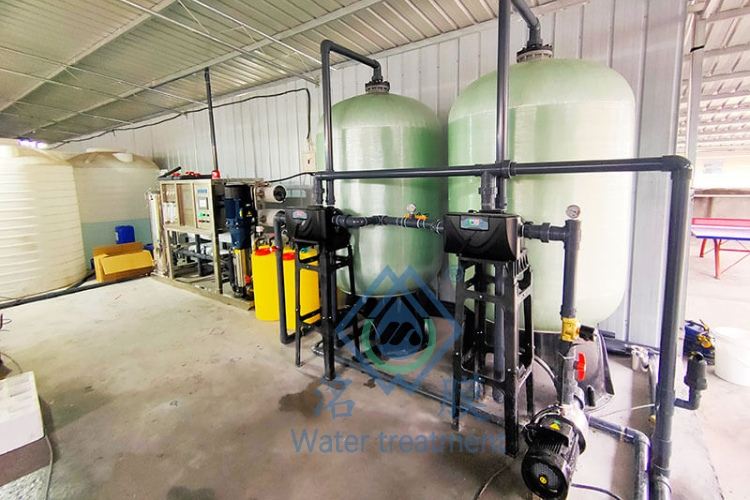

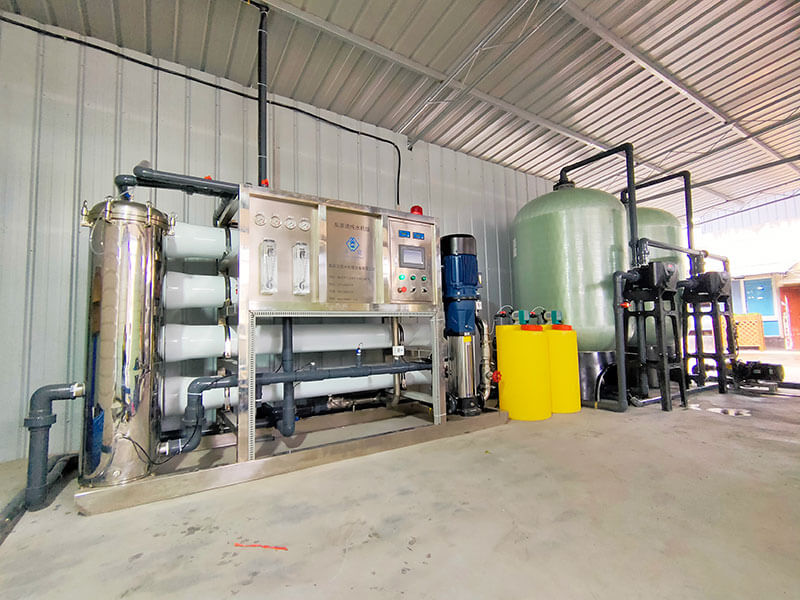

It’s a rural irrigation company that locates in south Mexicoflower growing land. This 8000LPH RO system is working together with a pretreatment ultrafiltration system to meet the special demand of cannabis growing.

System specifications

  • Project: 8000LPH reverse osmosis filtration plant for cannabis growing
  • Processing capacity: 8000L/H
  • Desalination rate: ≥99%
  • Revovery rate: 50%-75%
  • Raw water: river/rain water, TDS: 1400ppm
  • Product water: Purity sterile water for cannabis growing, TDS: ≤20ppm

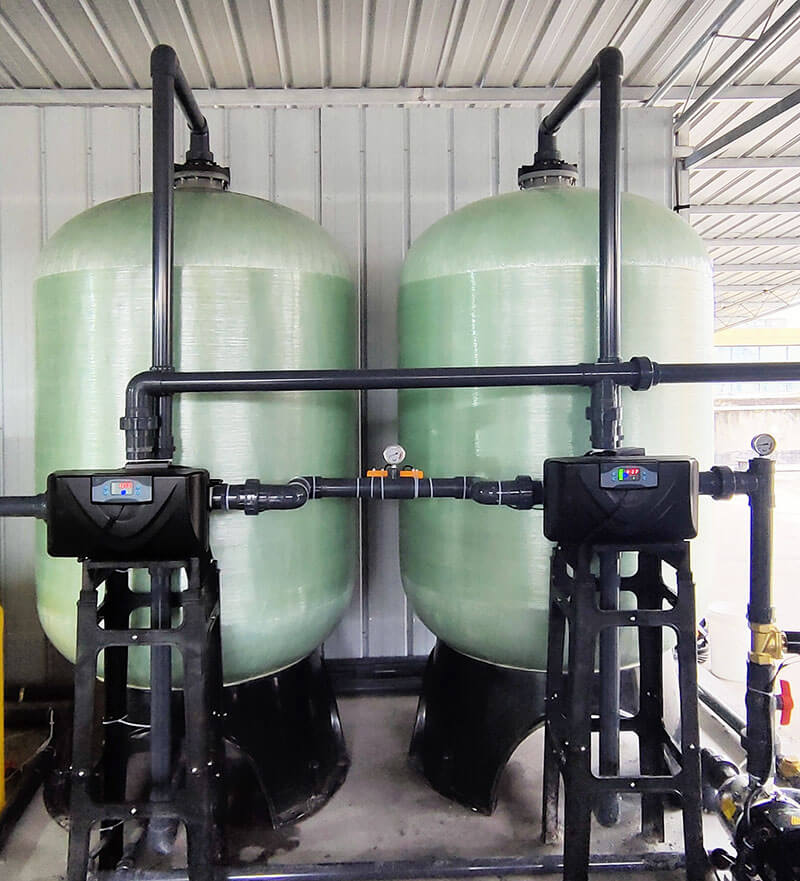

  • Pretreatment: Sand filter+carbon filter+scale inhibitor+1um micron filter

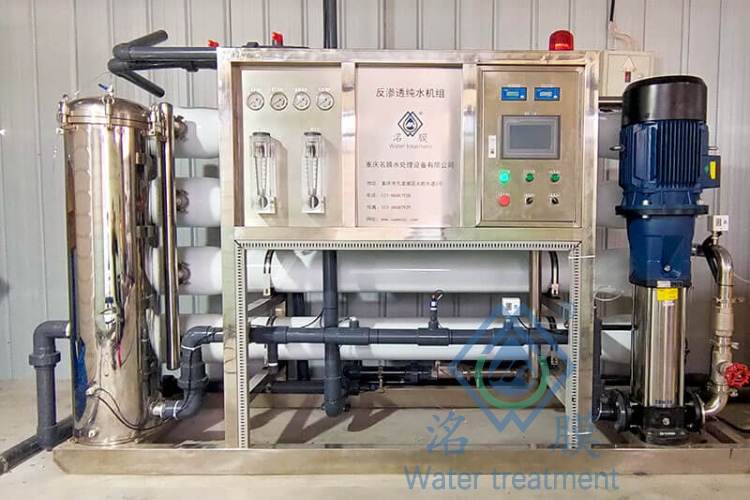

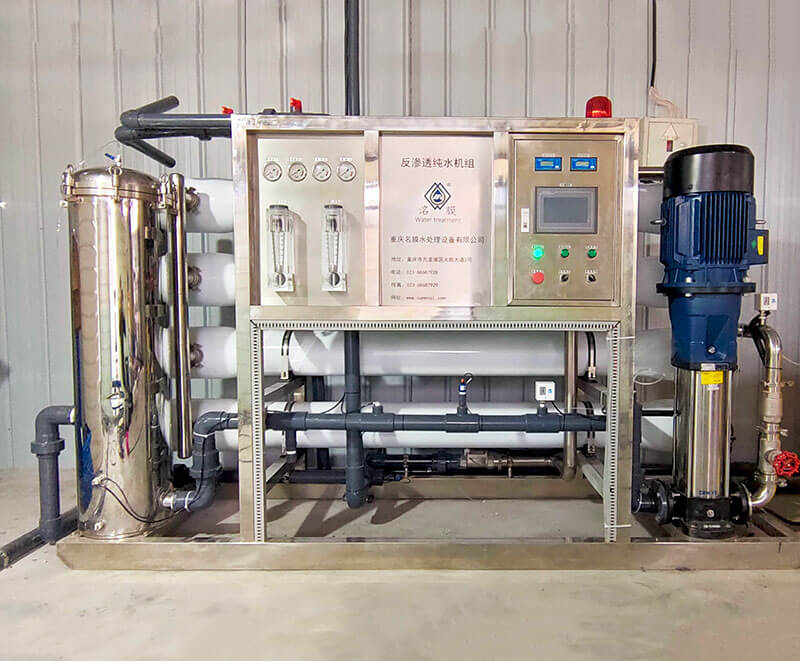

  • RO module: 8*Vontron LP22-8040 membrane+UV sterilizer
  • Valve: Runxin timer automatic
  • Controller: Siemens PLC+MCGS touch screen+Ai remote debugging
  • Power consumption: 9.25KW max

Feed water limits

  • Max operating pressure: 600psi(4.13Mpa)
  • Temperature: 5-45°C (113°F)
  • Max chlorine concentration: 0.1mg/L
  • Max feed flowrate: 17 m3/hr(75.0gpm)*4
  • Max feed turbidity: 1.0 NTU
  • Max feed SDI (15 minutes): 5.0
  • Feed pH range ( nominal): 2.0-11.0
