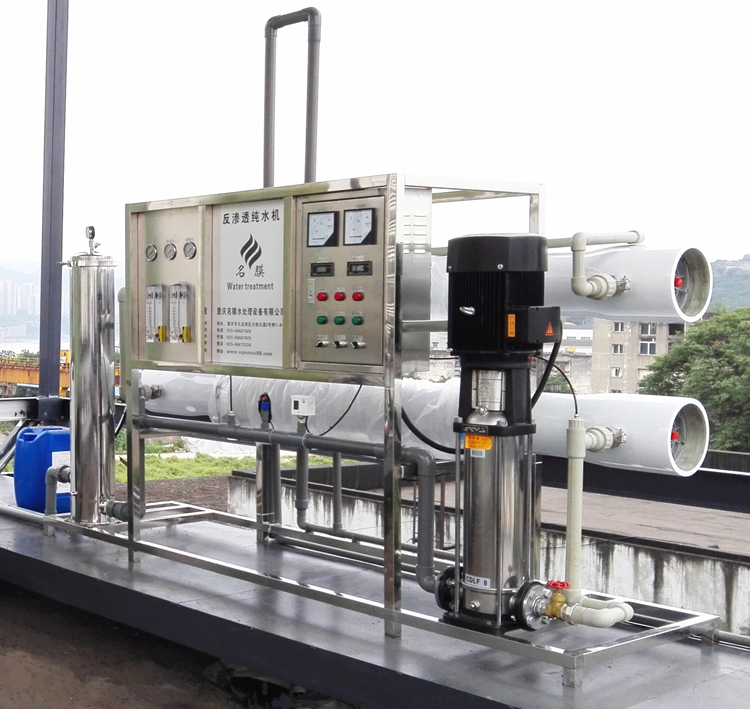

Stainless Steel RO Water Purification Plant 500LPH
2019-08-14 12:08:00
15
Mike.Ge
System specifications
- Unit: 500LPH reverse osmosis filtration plant with softener for underground water
- Processing capacity: 500L/H
- Desalination rate: ≥99%
- Revovery rate: 50%-75%
- Raw water: re water, TDS: 2000ppm
- Product water: High purity sterile water for community drinking, TDS: ≤20ppm
- Pretreatment: Sand filter+carbon filter+softener+1um micron filter
- RO module: 2*Dow LCLE4040 membrane+UV sterilizer
- Valve: Runxin timer automatic
- Pump: CNP
- Controller: Siemens PLC
- Power consumption: 1.95KW max
- Warranty: 2 years
Feed water limits
- Max operating pressure: 600psi(4.13Mpa)
- Temperature: 5-45°C (113°F)
- Max chlorine concentration: 0.1mg/L
- Max feed flowrate: 3.6 m3/hr(16.0gpm)*2
- Max feed turbidity: 1.0 NTU
- Max feed SDI (15 minutes): 5.0
- Feed pH range ( nominal): 2.0-11.0
