1000LPH RO plant in food workshop

2019-07-14 16:07:00 mike 569 0 Like

This is a generic system that applied in food & beverage workshop that reaches balance of cost & performance. The source water is from underground with TDS=800ppm, EC=400μS/m, hardness=450mg/L, so a softener tank was added to the system. The outlet water with TDS≤7ppm, EC≤3.5μS/m, hardness≤50mg/L that goes above the national standard.

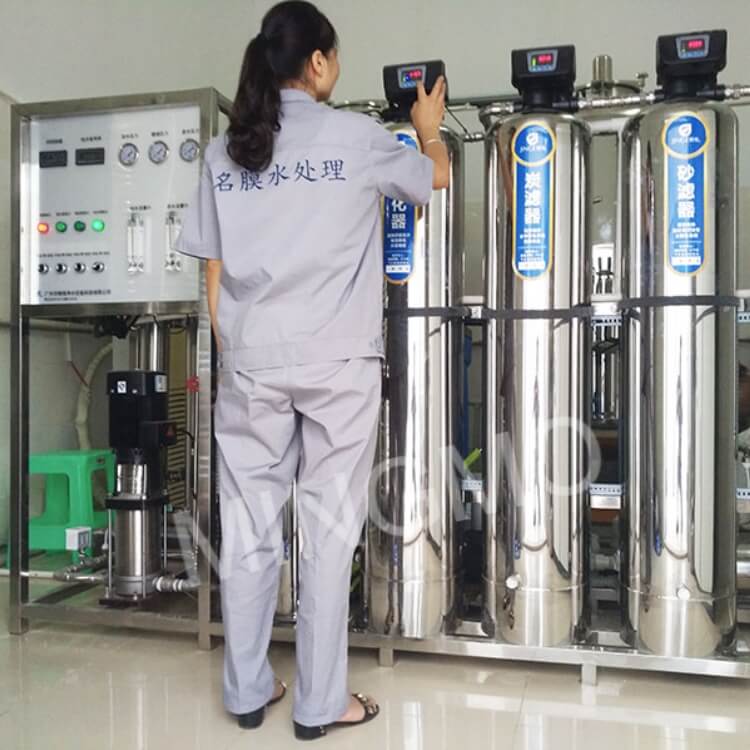

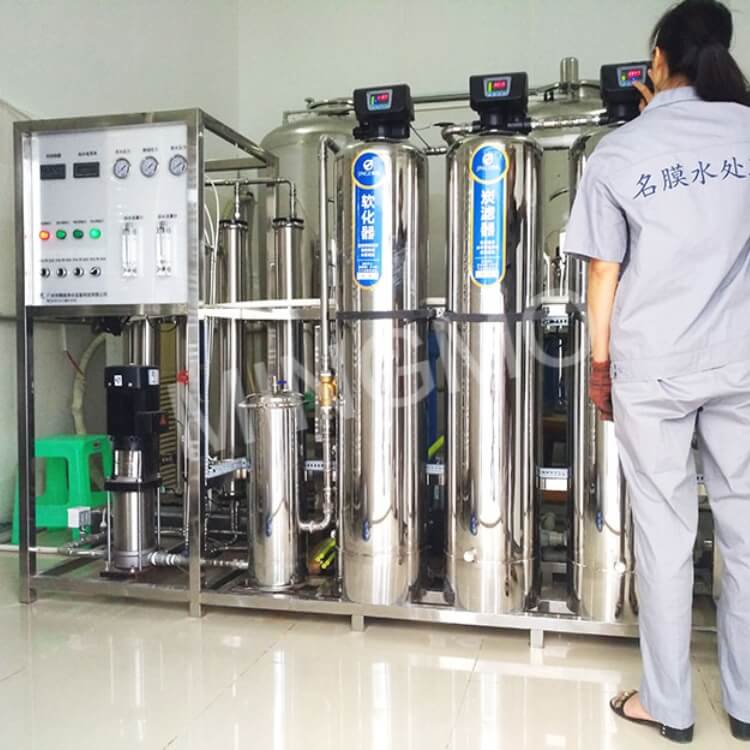

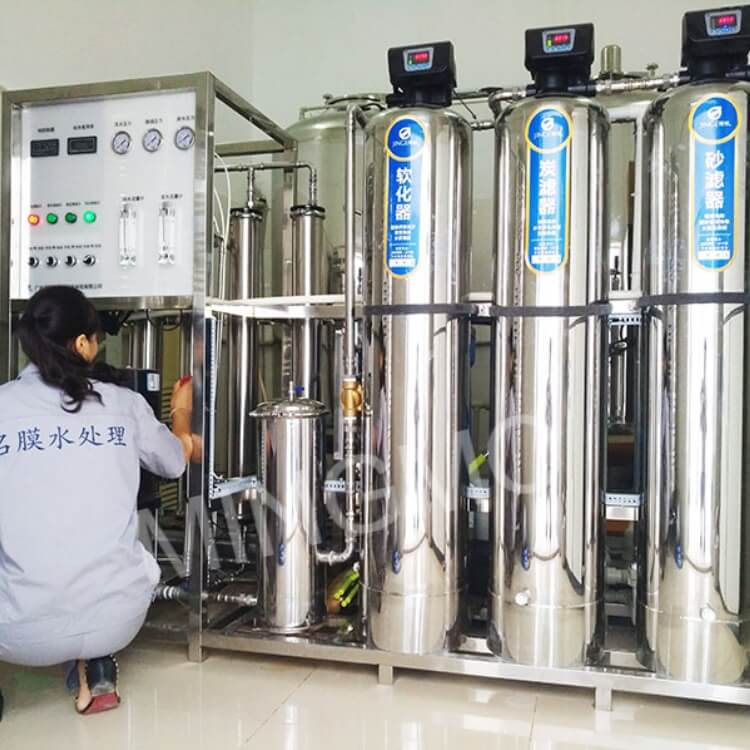

  • Project: 1000LPH reverse osmosis filtration plant all SS304 tanks and pipelines
  • Processing capacity: 1000L/H
  • Desalination rate: ≥99%
  • Revovery rate: 50%-75%
  • Raw water: river water, TDS: 1200ppm
  • Product water: High purity sterile water for food processing, TDS: ≤15ppm
  • Pretreatment: Sand filter+carbon filter+water softener+1um micron filter
  • RO module: 4*Vontron ULP21-4040 membrane+UV sterilizer
  • Valve: Runxin timer automatic
  • Controller: Preset program
  • Power consumption: 2.25KW max

Feed water limits

  • Max operating pressure: 600psi(4.13Mpa)
  • Temperature: 5-45°C (113°F)
  • Max chlorine concentration: 0.1mg/L
  • Max feed flowrate: 3.6 m3/hr(16.0gpm)*4
  • Max feed turbidity: 1.0 NTU
  • Max feed SDI (15 minutes): 5.0
  • Feed pH range ( nominal): 2.0-11.0
